A revolutionary 4K camera system designed by divers, for divers.

BarrelEye Dive ALL-IN-ONEBarrelEye Dive TOP MOUNTBarrelEye Dive PTZ
Prepared for the depths
UAMTEC designed and manufactured the BarrelEye Dive to meet the needs of commercial divers and diving companies. Working closely with industry experts, the team at UAMTEC sought to create a versatile and reliable camera system that would deliver crisp, 4K high-resolution images and video footage, as well as real-time depth and temperature readings. The goal was to provide a user-friendly, plug-and-play solution that would be ready to use out of the box, cater to an array of applications, and make it effortless for divers to capture high-quality footage and data in a variety of underwater environments.
BarrelEye DiveALL-IN-ONE
The compact, high-performance subsea camera & light system
technology/barreleye-dive/camera_and_light/cam-big_01.png

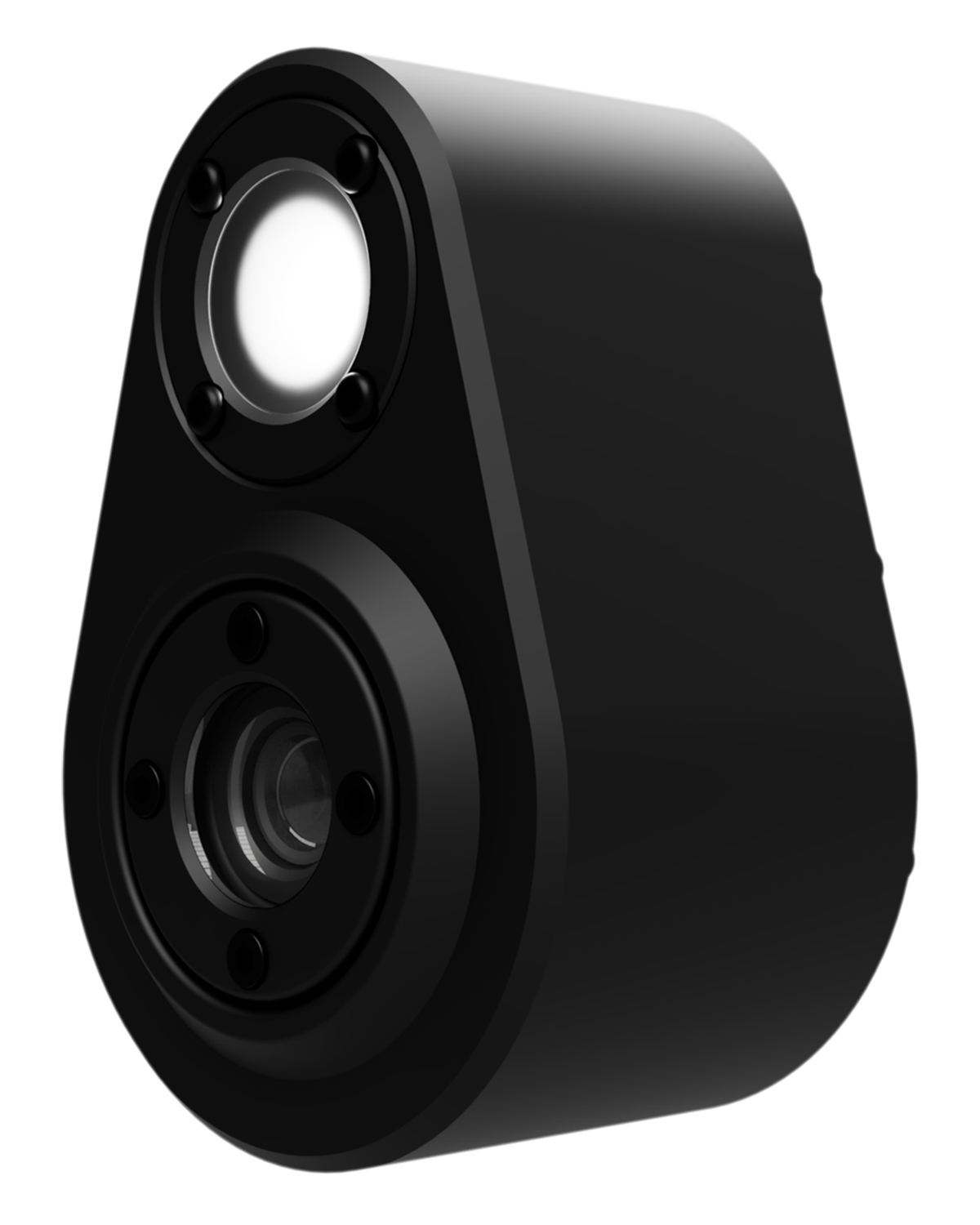

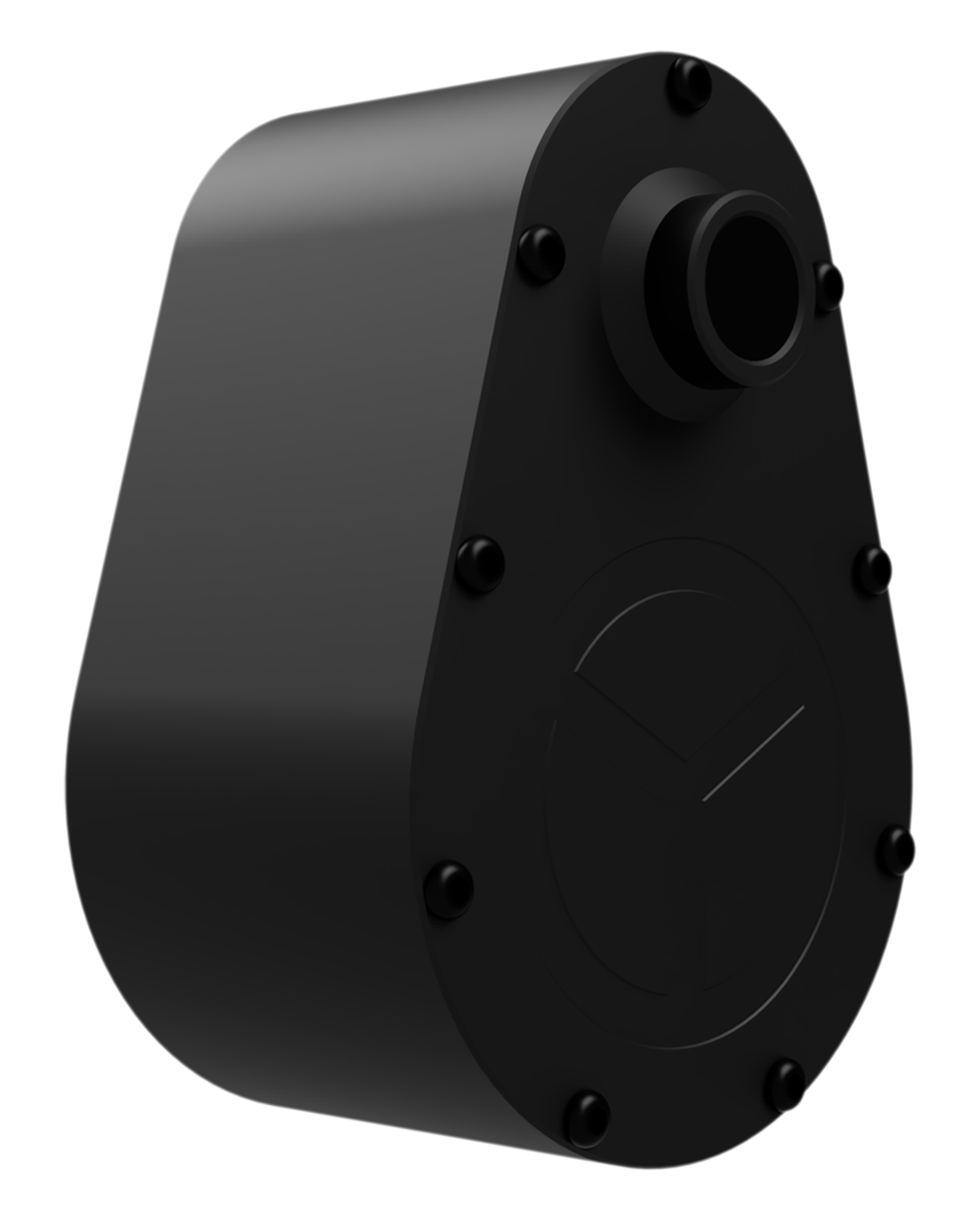

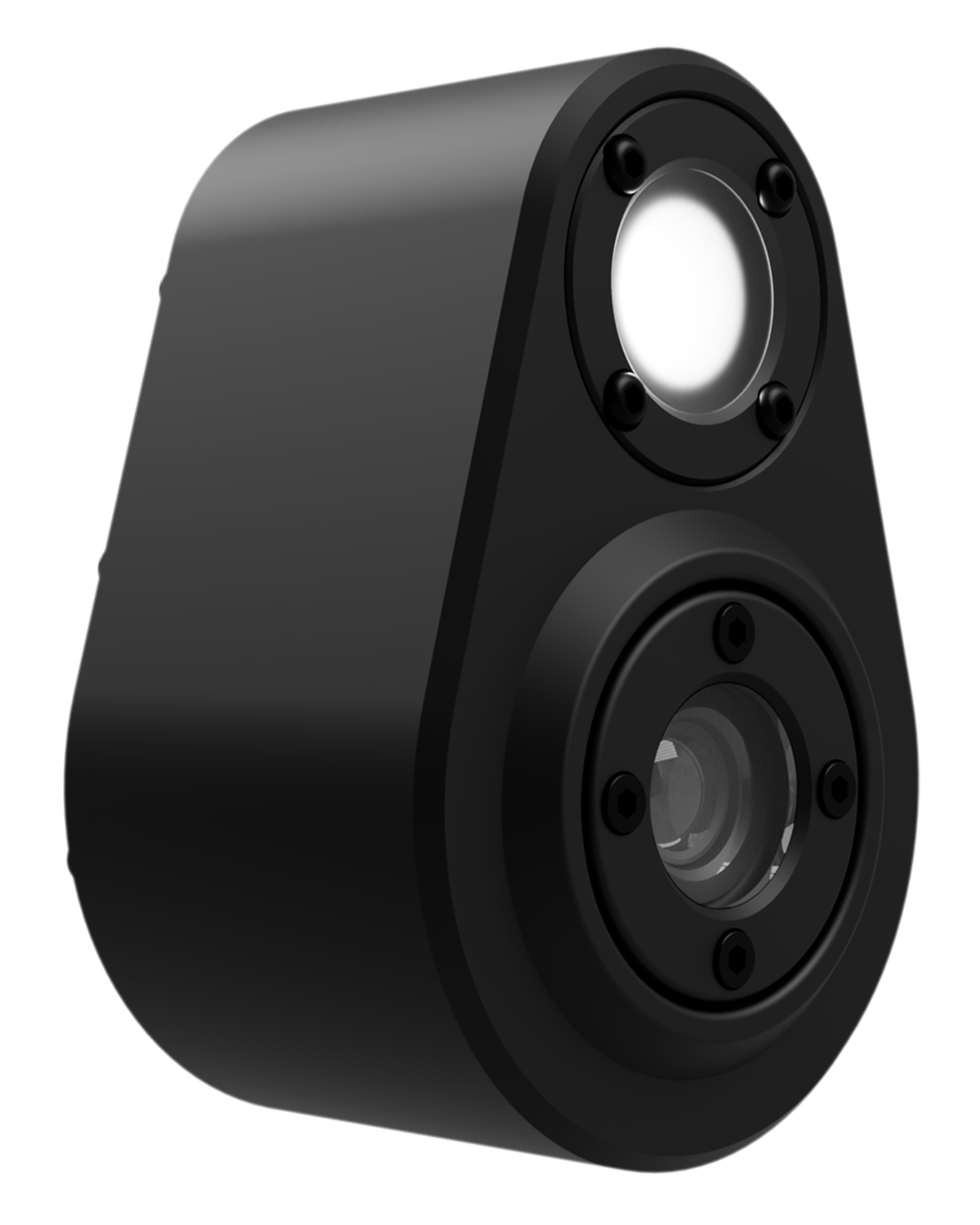

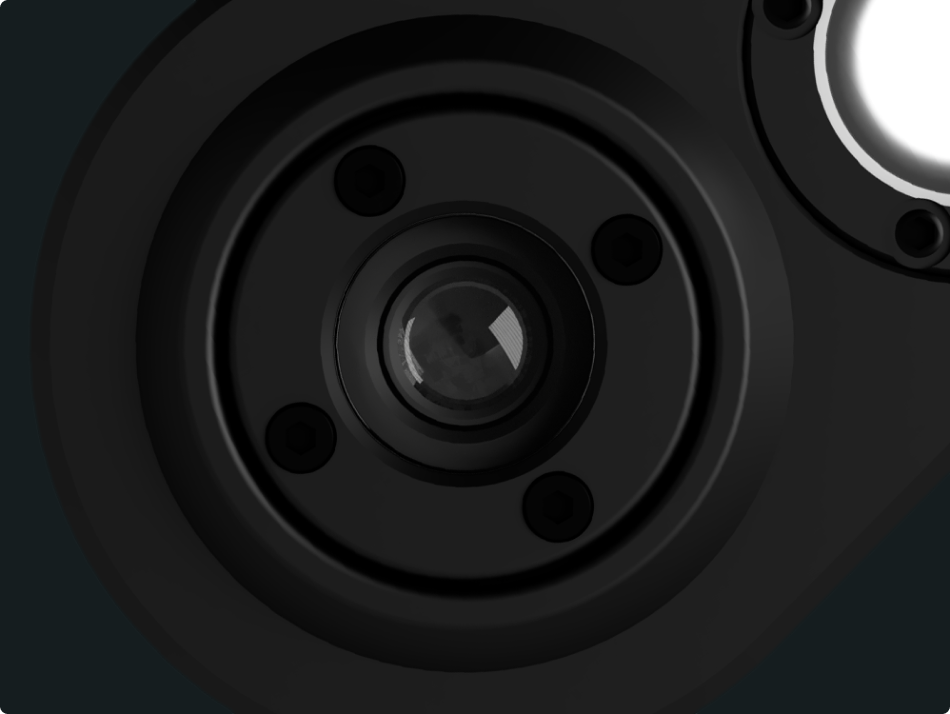

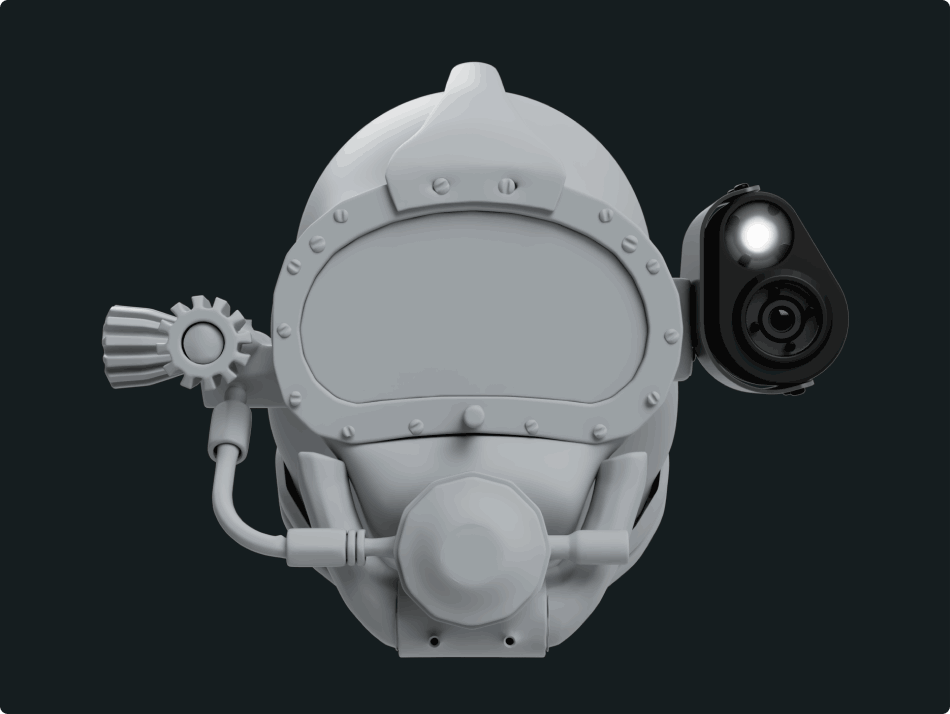

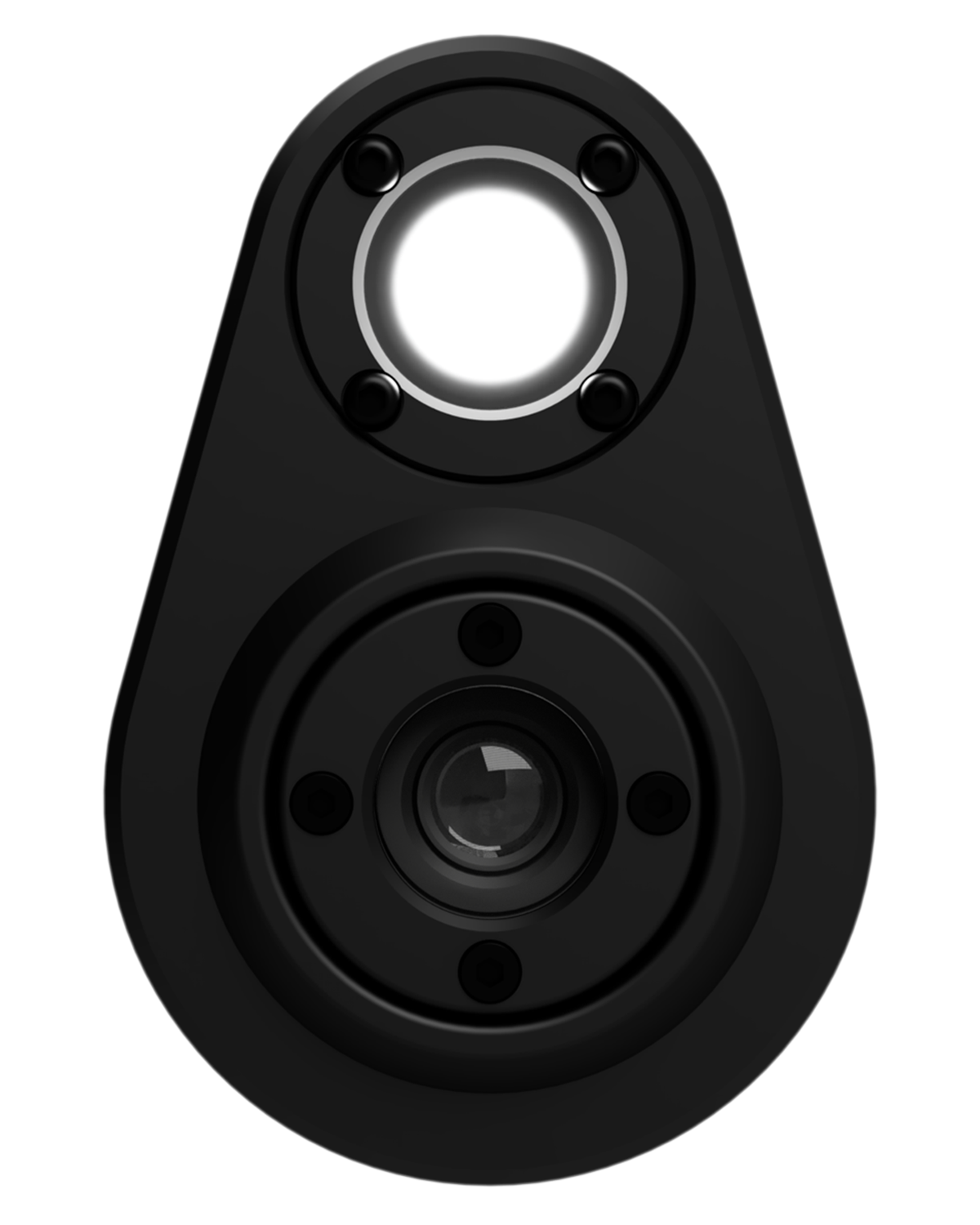

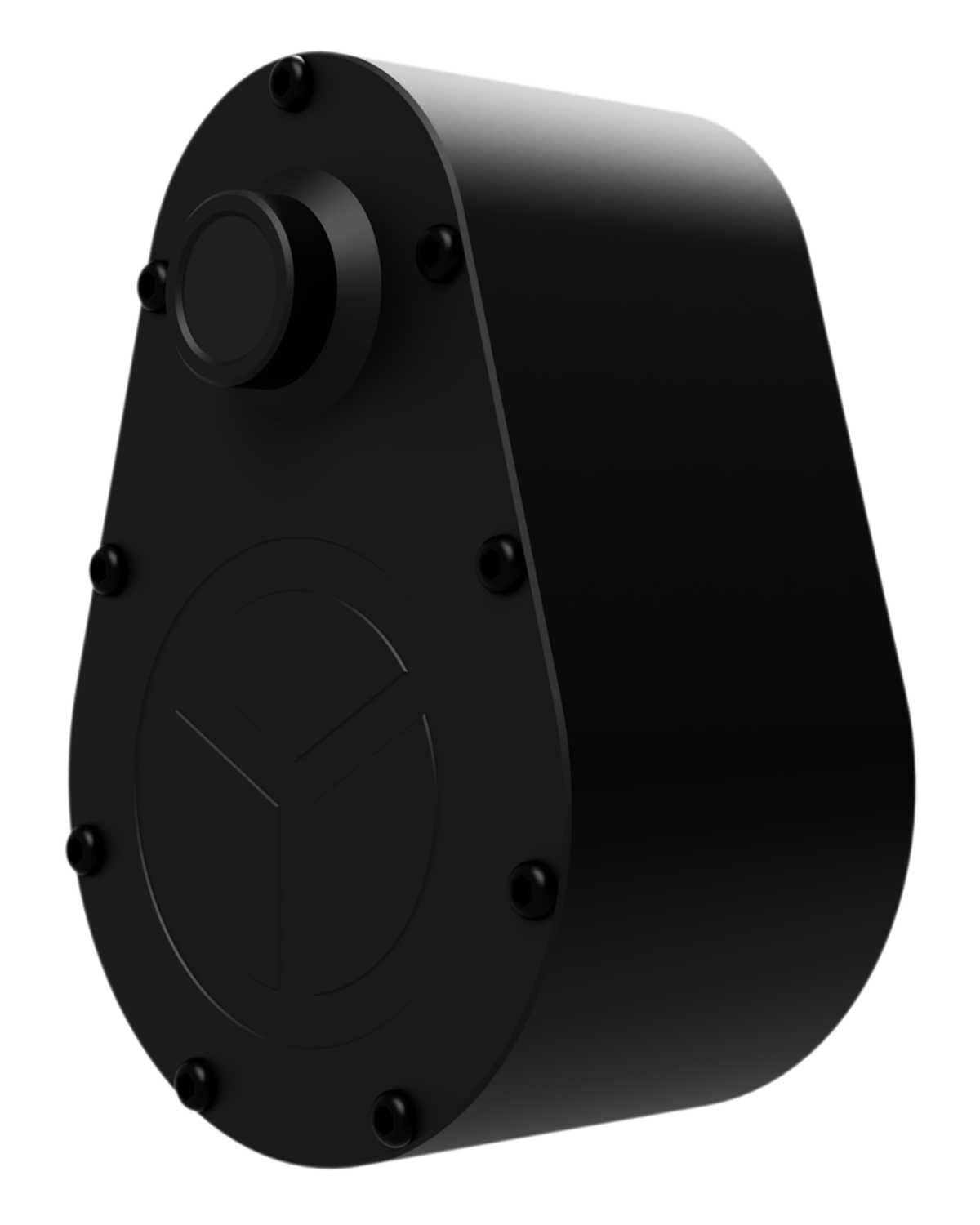

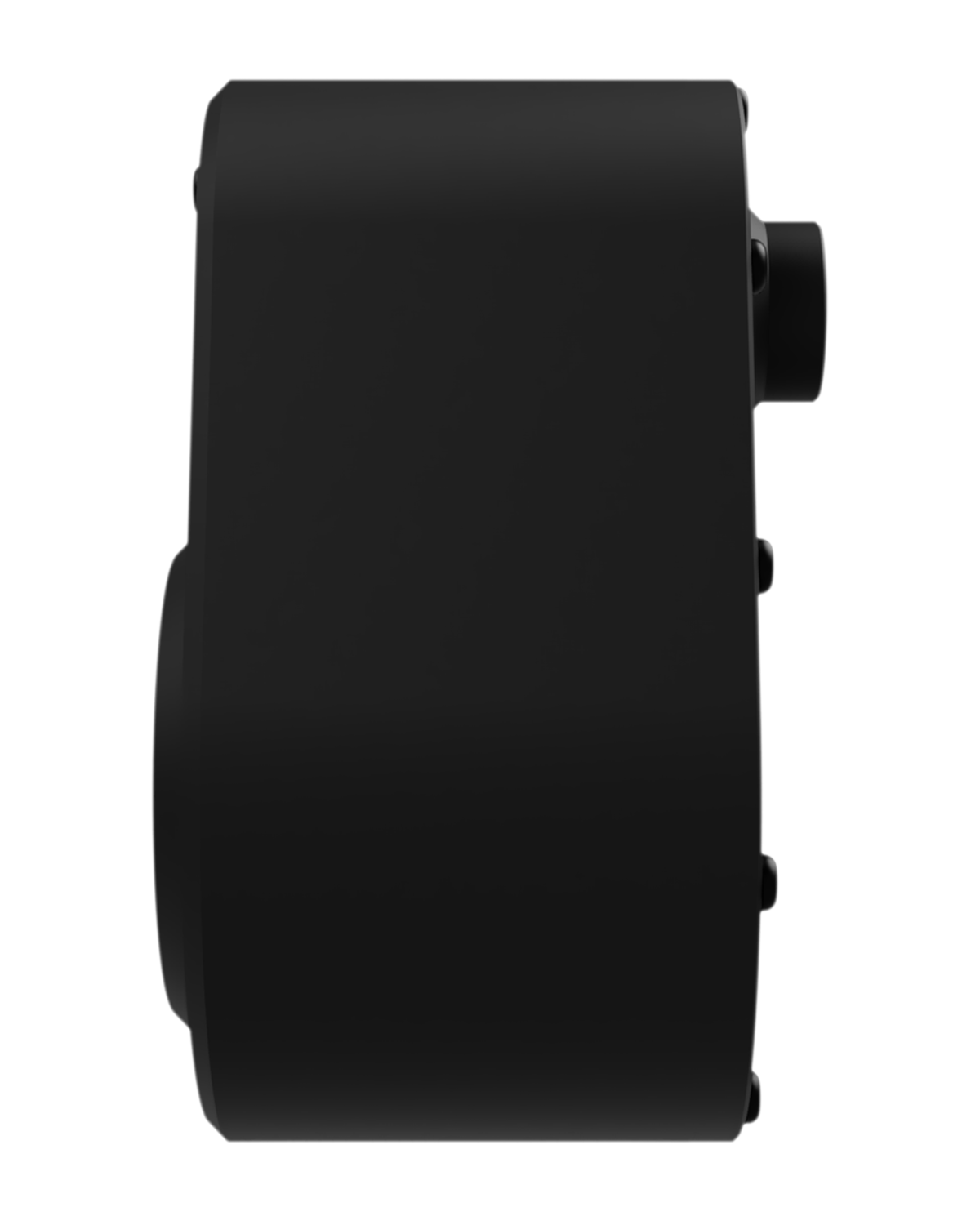

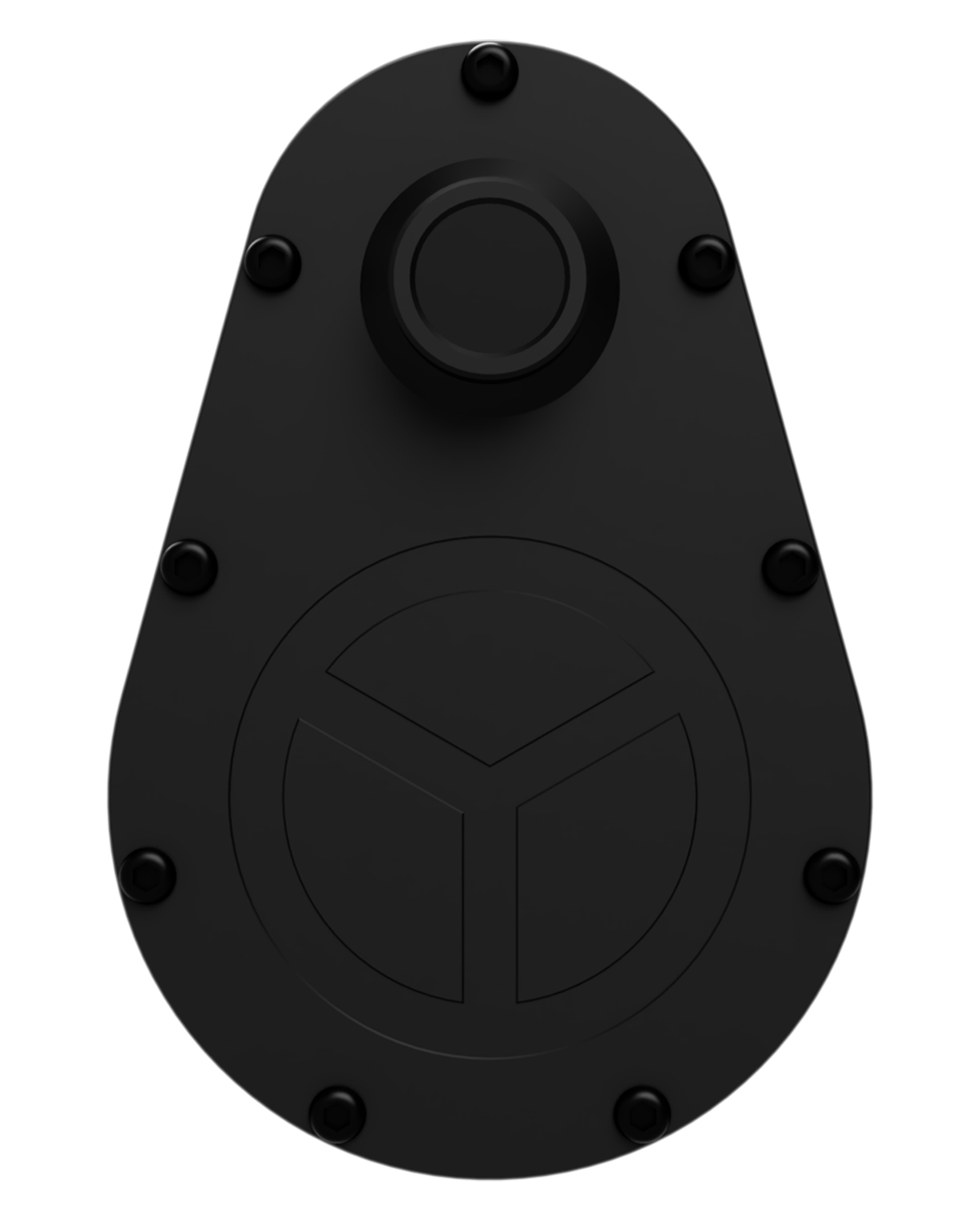

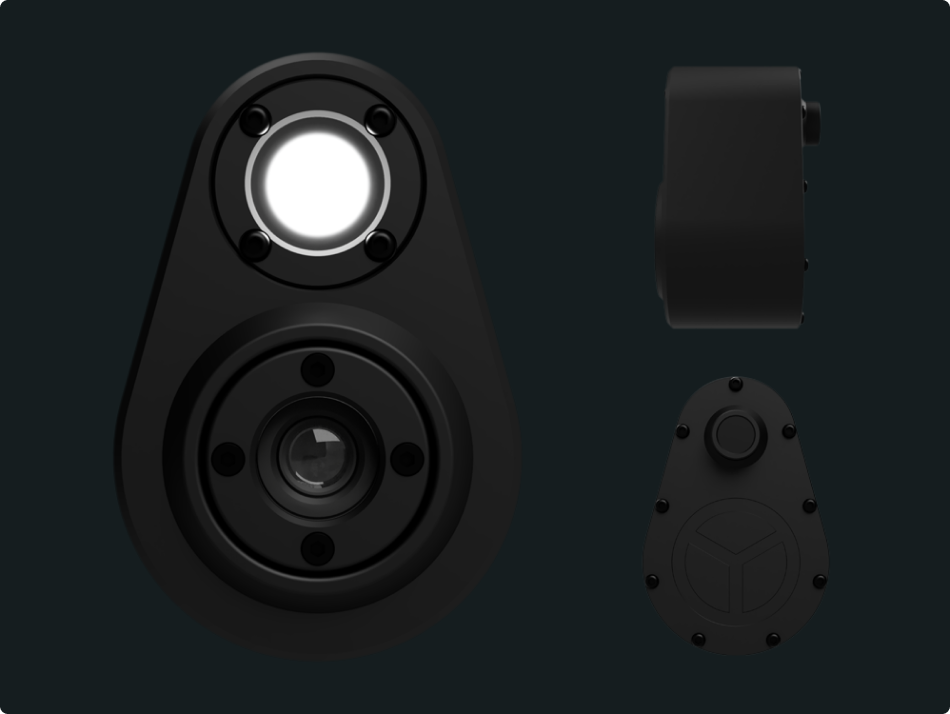

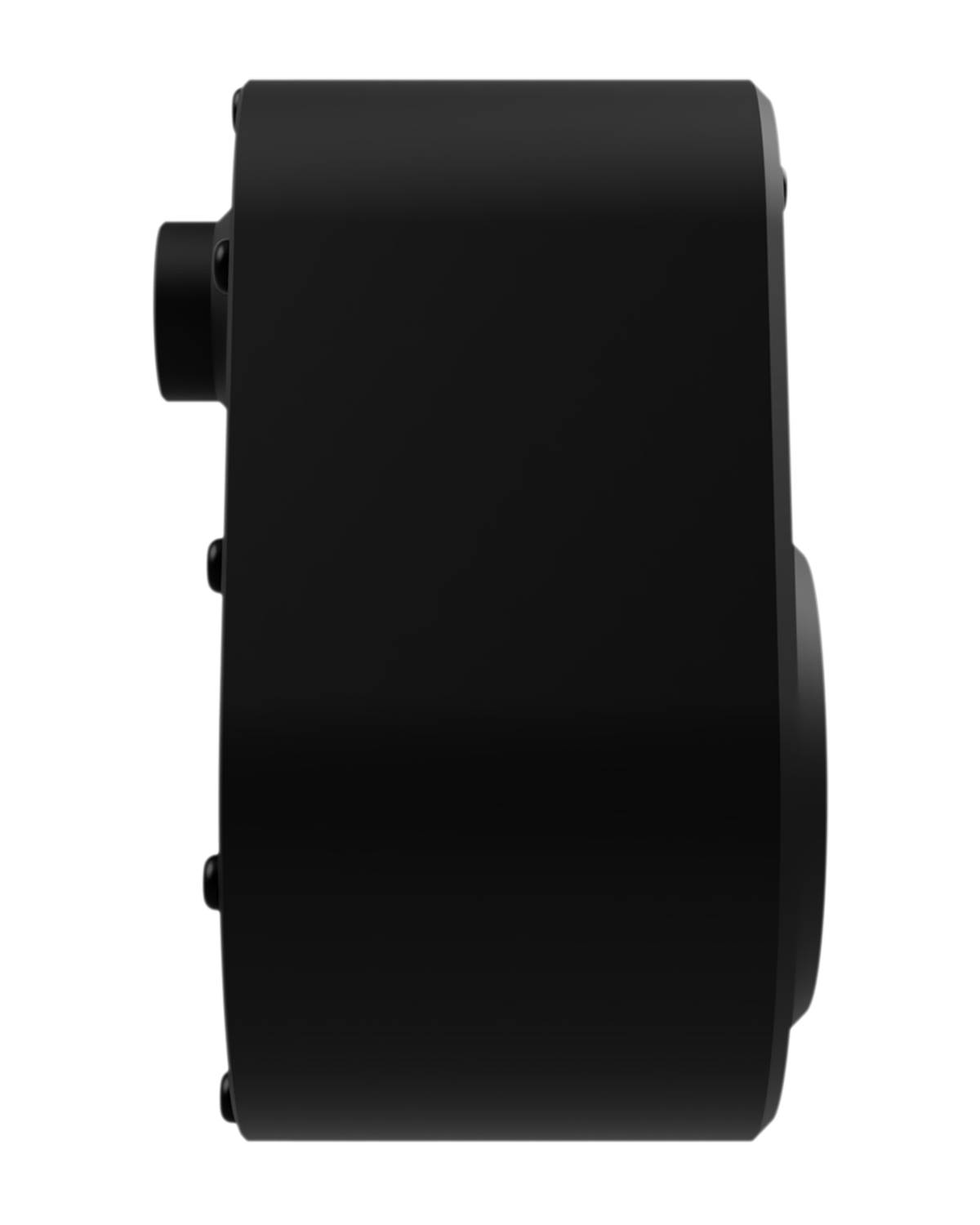

The BarrelEye Dive All-in-one light and camera system is designed to be in the line of sight of the diver, with preset and adjustable angles, the video feed can be set to exactly what the diver is seeing. Featuring an industry first 8.3megapixel Ultra HD camera, built in lighting up to 1080 lumen, and all encased in a rugged design made from marine grade hard-anodised aluminium.
RESOLUTION
4K ULTRA HD VIDEO
CAMERA
8.3 MEGA PIXEL UHD
LIGHT
UP TO 1080 LUMEN
SENSOR FEEDS
DEPTH, PRESSURE & TEMPERATURE
DEPTH RATING
300M
TETHER LENGTH
UP TO 500M
SIZE
H:109MM W:74MM D:76MM
WEIGHT
560G (IN WATER)
Quick & Easy Installation
Quick & Easy Installation

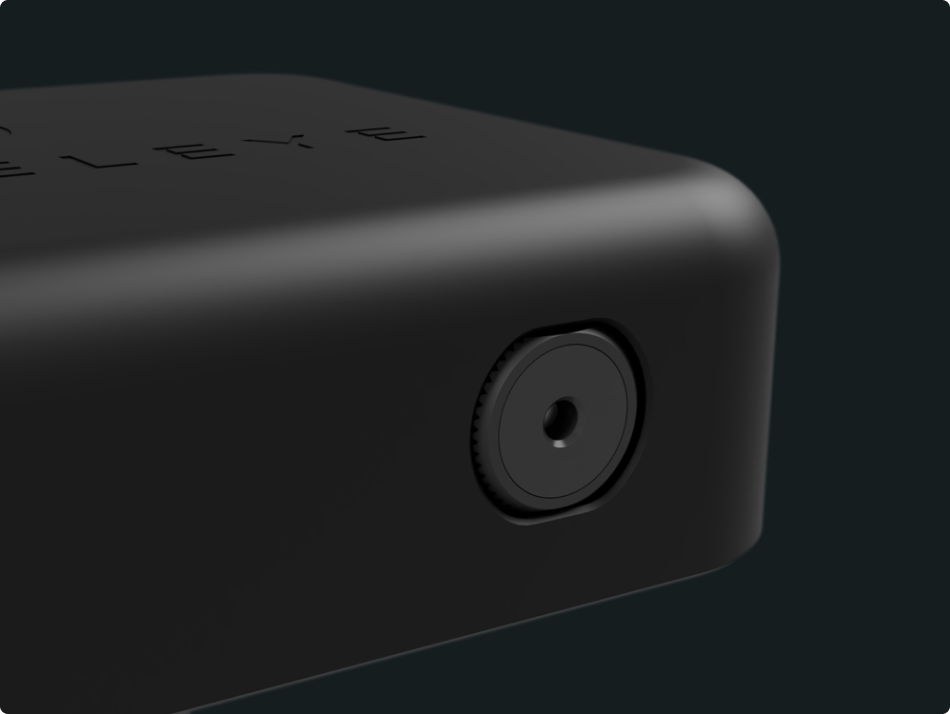

The BarrelEye camera system is designed with ease of assembly in mind. The system is specifically built to fit widely used Kirby Morgan diving helmets and can be mounted in just five minutes. The system also comes with adjustment screws that allow for easy pan and tilt maneuverability, ensuring that the camera is aligned directly with the diver's line of sight.
    Specifications
    BarrelEye DiveTOP MOUNT
    The light weight combination Ultra HD camera & light system

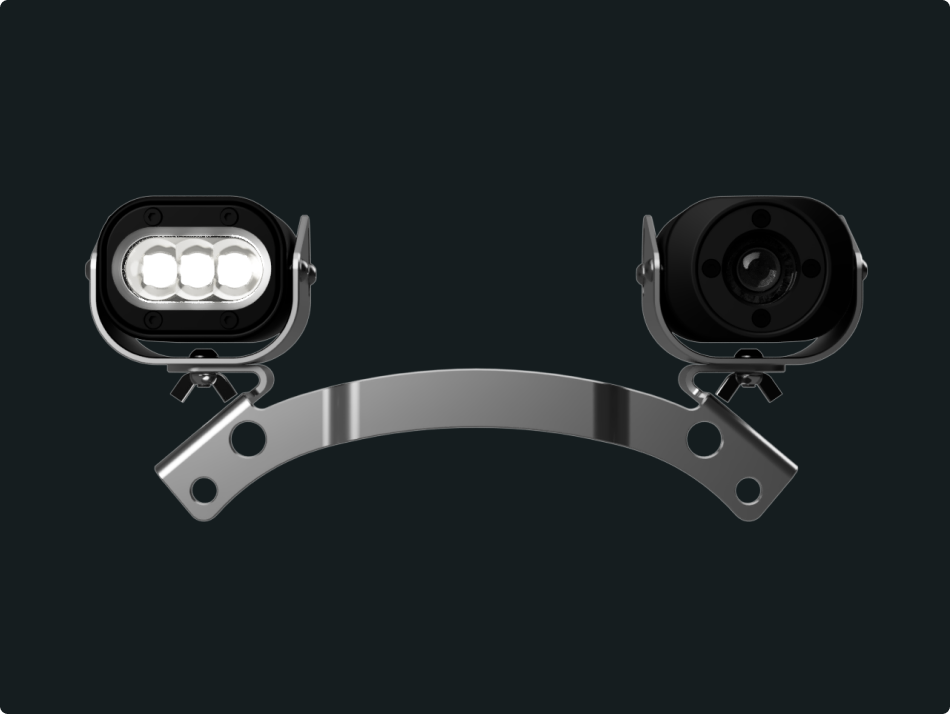

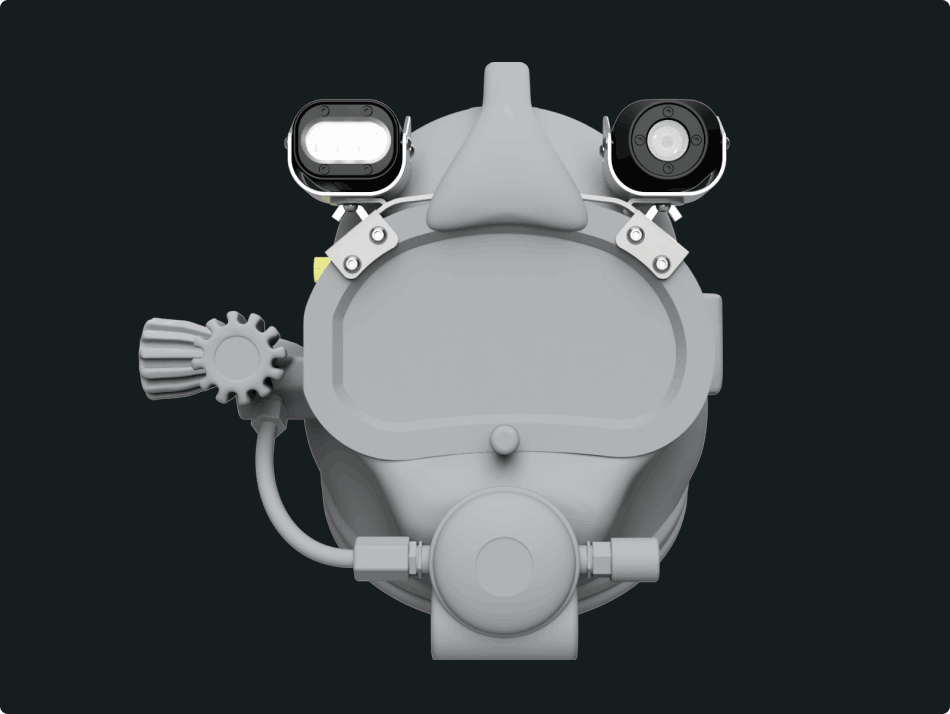

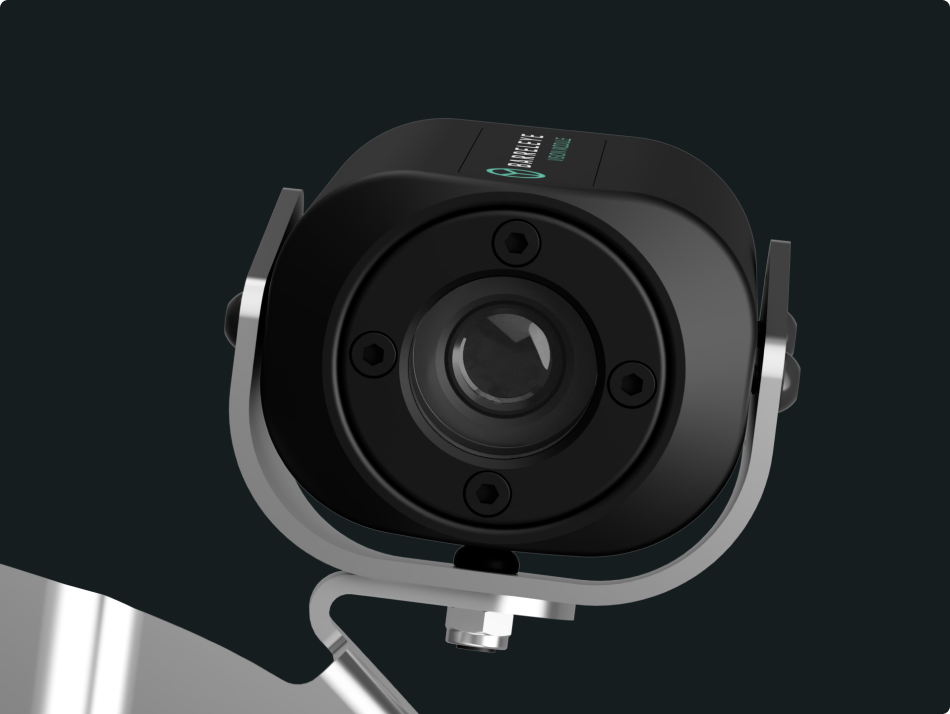

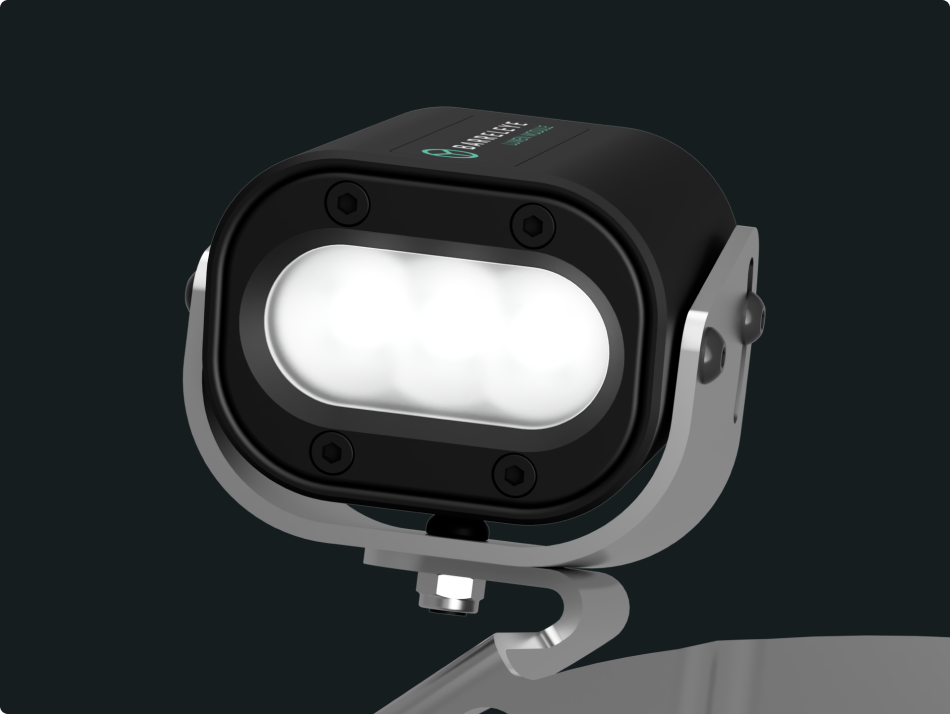

    The BarrelEye Dive Top Mount is a weight balanced camera and light system designed for dive comfort and capturing Ultra-high-definition video and imagery. The high intensity light module allows illumination in even the lowest visibility environments.
    The Top Mount systems versatile bracket designs ensure compatibility with any dive helmet. Custom bracket designs are available upon request to suit bespoke requirements.
    RESOLUTION
    4K ULTRA HD VIDEO
    CAMERA
    8.3 MEGA PIXEL UHD
    LIGHT
    UP TO 3000 LUMEN
    SENSOR FEEDS
    DEPTH, PRESSURE & TEMPERATURE
    DEPTH RATING
    300M
    TETHER LENGTH
    UP TO 500M
    SIZE
    Camera H:66MM W:60MM D:46MM
    Light: H:66MM W:60MM D:46MM
    WEIGHT
    Camera: 295G (IN WATER)
    LighT: 280G (IN WATER)
    Versatile & reliable
    Versatile & reliable

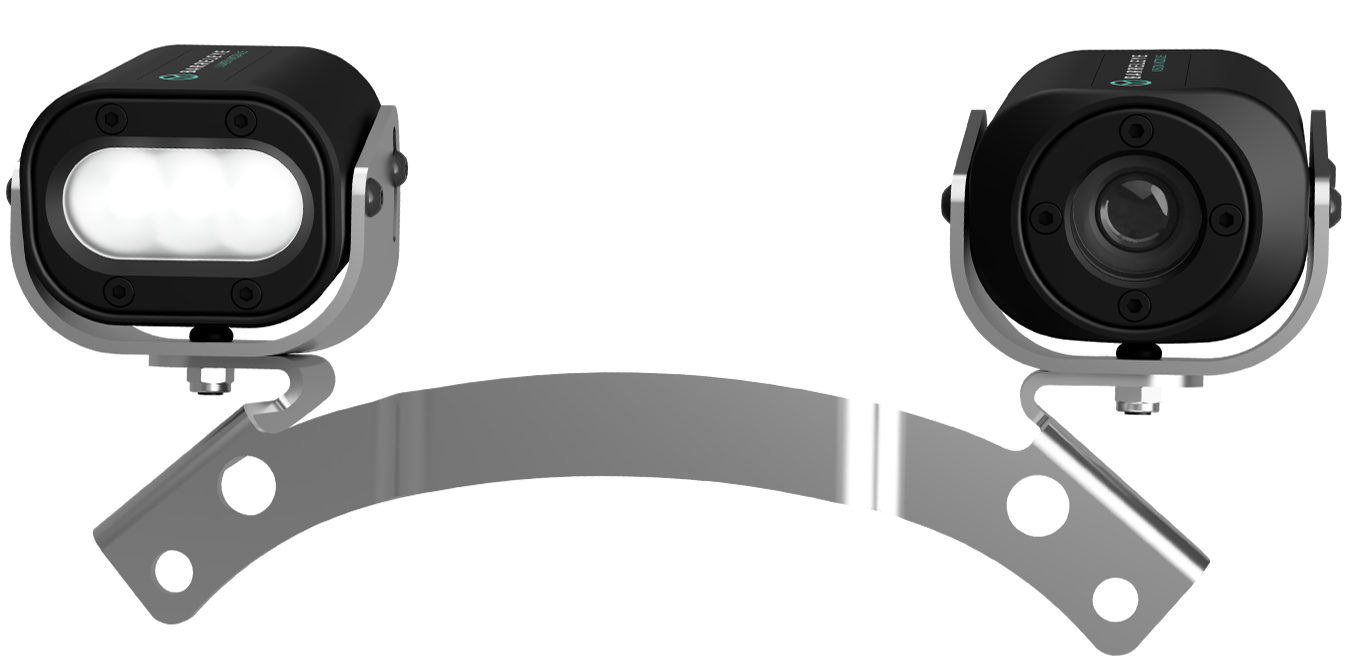

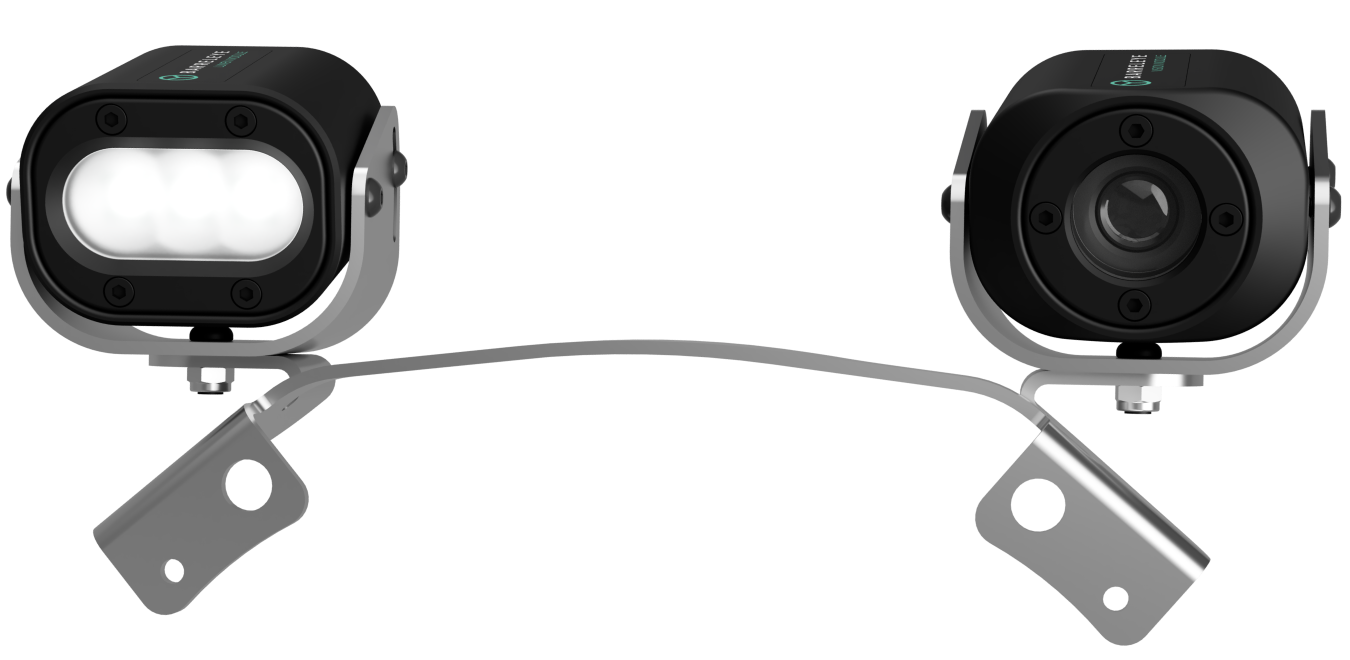

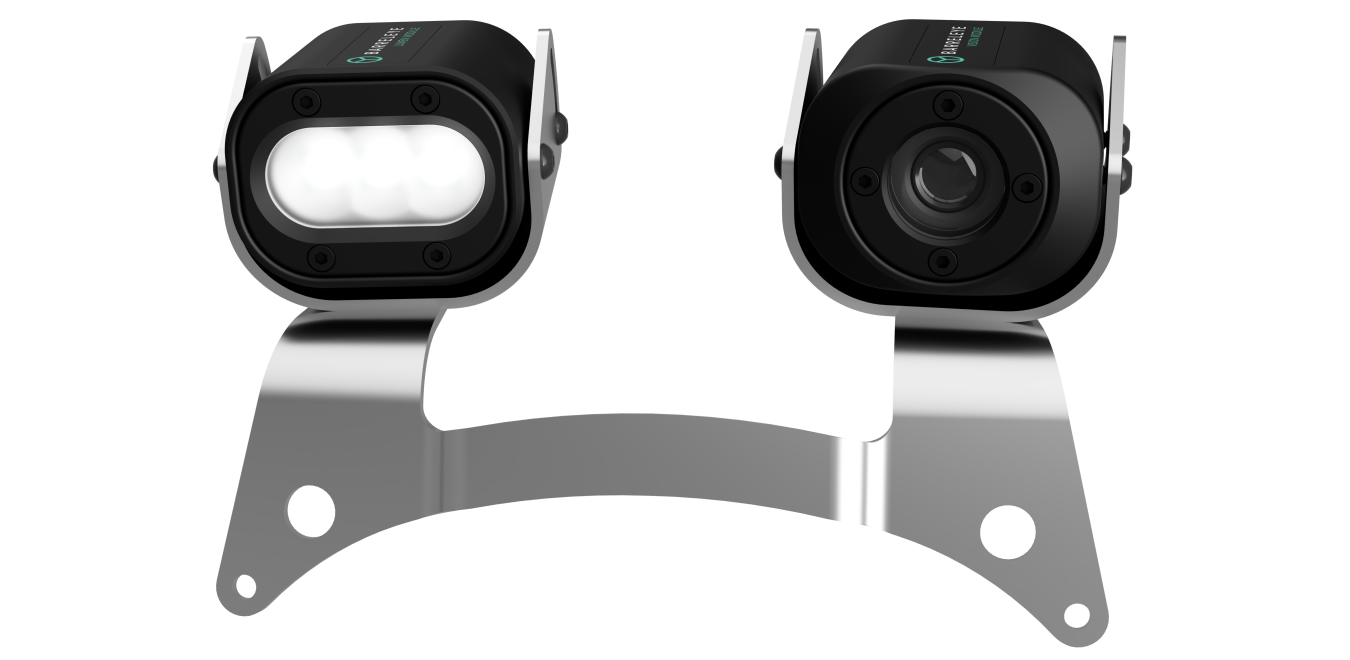

    BarrelEye Dive Top Mount camera system can be easily integrated with any dive helmet type including:
    • Kirby Morgan
    • Bandmask
    • Stainless Steel
    • Custom Configurations
    Specifications
    BarrelEye DivePTZ
    The dual axis actuated ultra HD subsea camera & light system
    PTZ

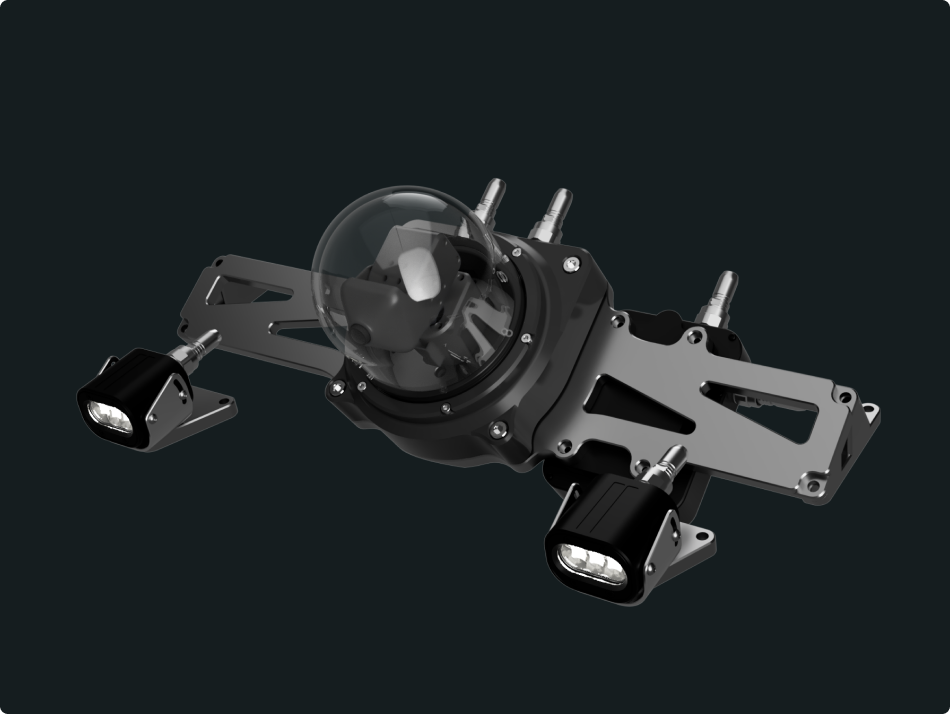

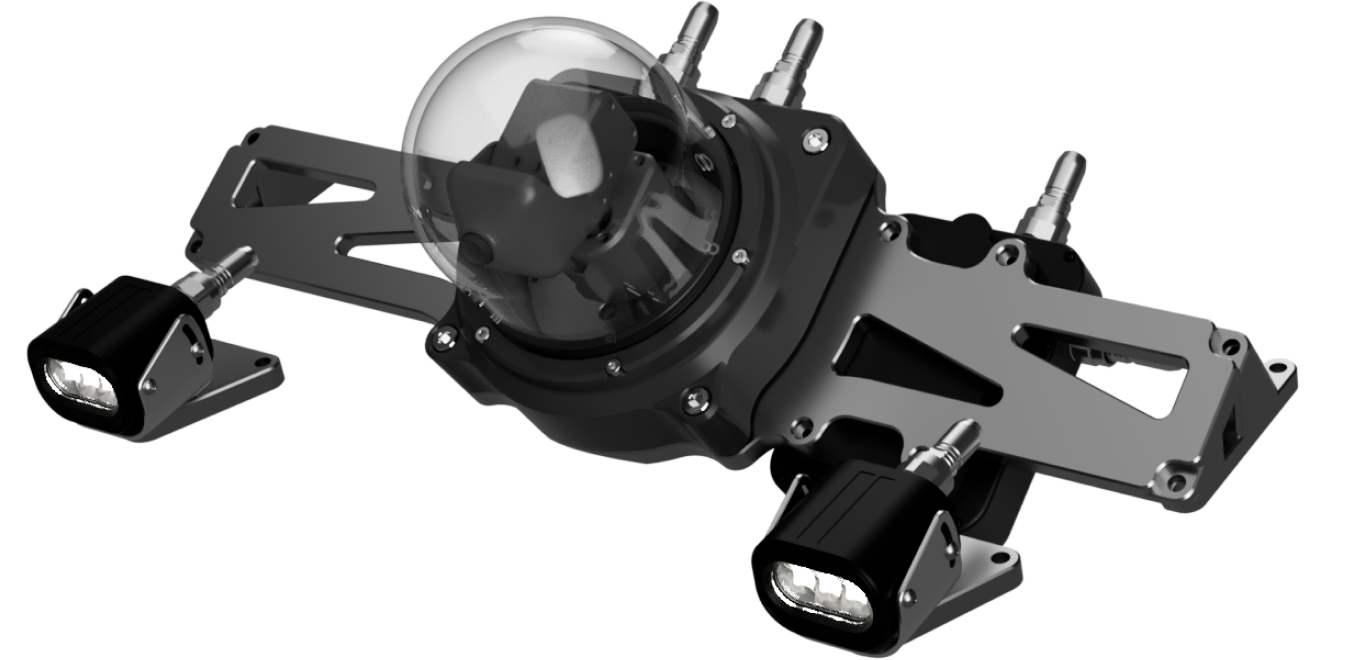

    The BarrelEye PTZ camera system can equip almost any ROV with live ultra-high definition visuals. The PTZ camera with 12x digital zoom gives the operator superior vision for seamless navigation and continuous capture of the operation.
    Advanced auto/manual focusing options coupled with dual lighting modules provide sharp, clear imagery in the most challenging conditions.
    Engineered for easy integration with underwater cleaning ROVs straight out of the box, but can be catered to fit unique applications.
    RESOLUTION
    4K ULTRA HD VIDEO
    CAMERA
    8.3 MEGA PIXEL UHD
    LIGHT
    UP TO 6000 LUMEN
    SENSOR FEEDS
    DEPTH, PREESURE & TEMPERATURE
    DEPTH RATING
    100M
    TETHER LENGTH
    UP TO 200M
    SIZE
    H:109MM W:74MM D:76MM
    WEIGHT
    560G (IN WATER)
    Experience sharp, clear footage with our Ultra HD PTZ Camera
    Experience sharp, clear footage with our Ultra HD PTZ Camera
    Capture the full environment in Ultra High Definition from the ROV platform with the pan, tilt, zoom capabilities our our ROV-mountable camera system.
      Specifications
      UAMTECH Logo

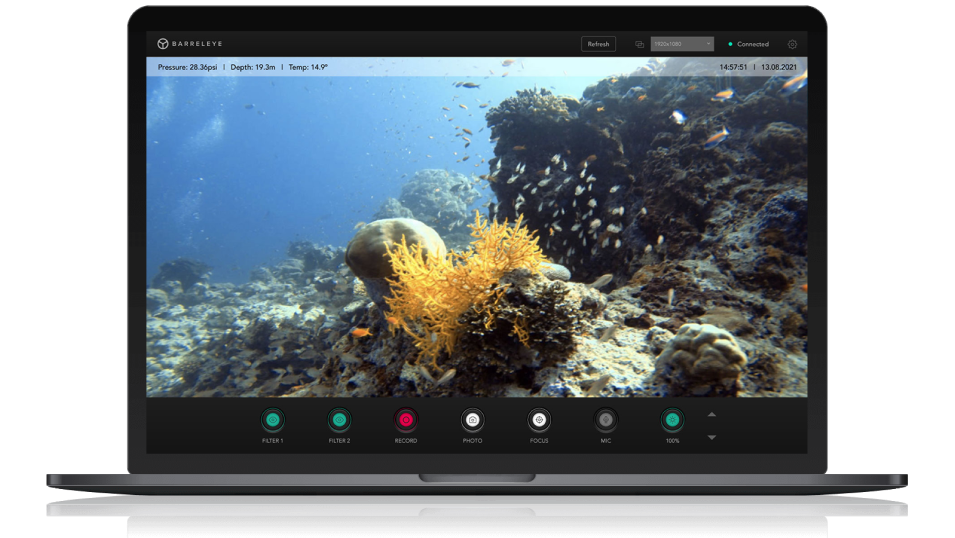

      Enhance your dive with the Capture App: Ultra HD footage, real-time filters, and live data readings
      The Capture App is the perfect companion to the BarrelEye Dive camera system. This user-friendly, Windows/MAC compatible, plug and play application allows you to stream real-time Ultra High Definition video, record and save footage, capture photo-quality images, apply real-time filters to improve the clarity of footage in low visibility environments, and control the intensity of light.
      With integrated depth, pressure and temperature readings, the Capture App also features easy to use configuration options, making it a versatile and essential tool for any underwater exploration or commercial diving mission.

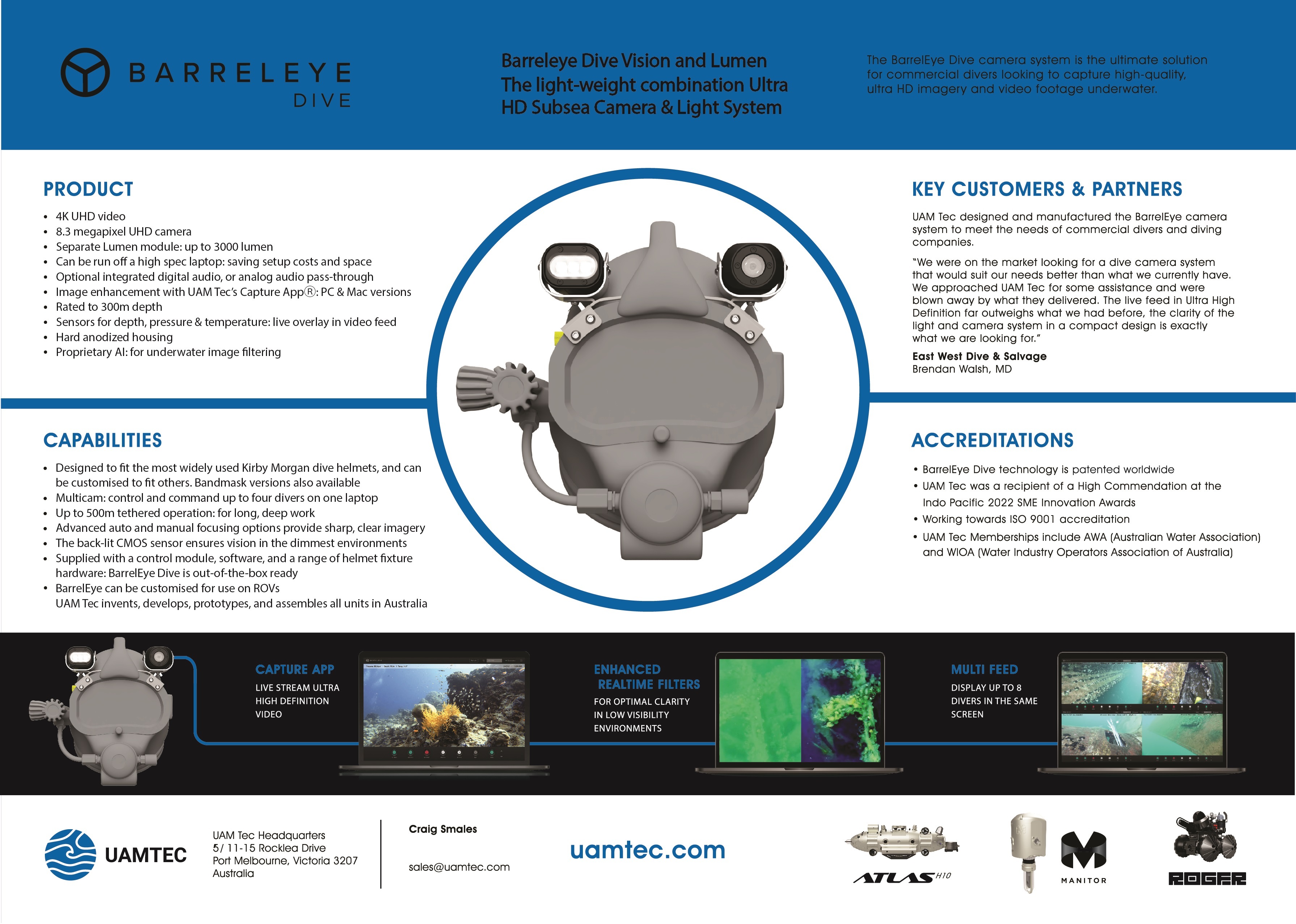

      Get a comprehensive overview of the BarrelEye with our detailed Quad Chart. This chart provides key insights, features, benefits, and technical specifications to help you understand how the BarrelEye can meet your needs. Click the link above to download and explore the innovative capabilities of the BarrelEye.
      “We were on the market looking for a dive camera system that would suit our needs better than what we currently have. We approached UAMTEC for some assistance and were blown away by what they delivered. The live feed in Ultra High Definition far outweighs what we had before, the clarity of the light and camera system in a compact design is exactly what we are looking for.”
      Brendan Walsh
      Managing Director
      East West Dive & Salvage, Australia
